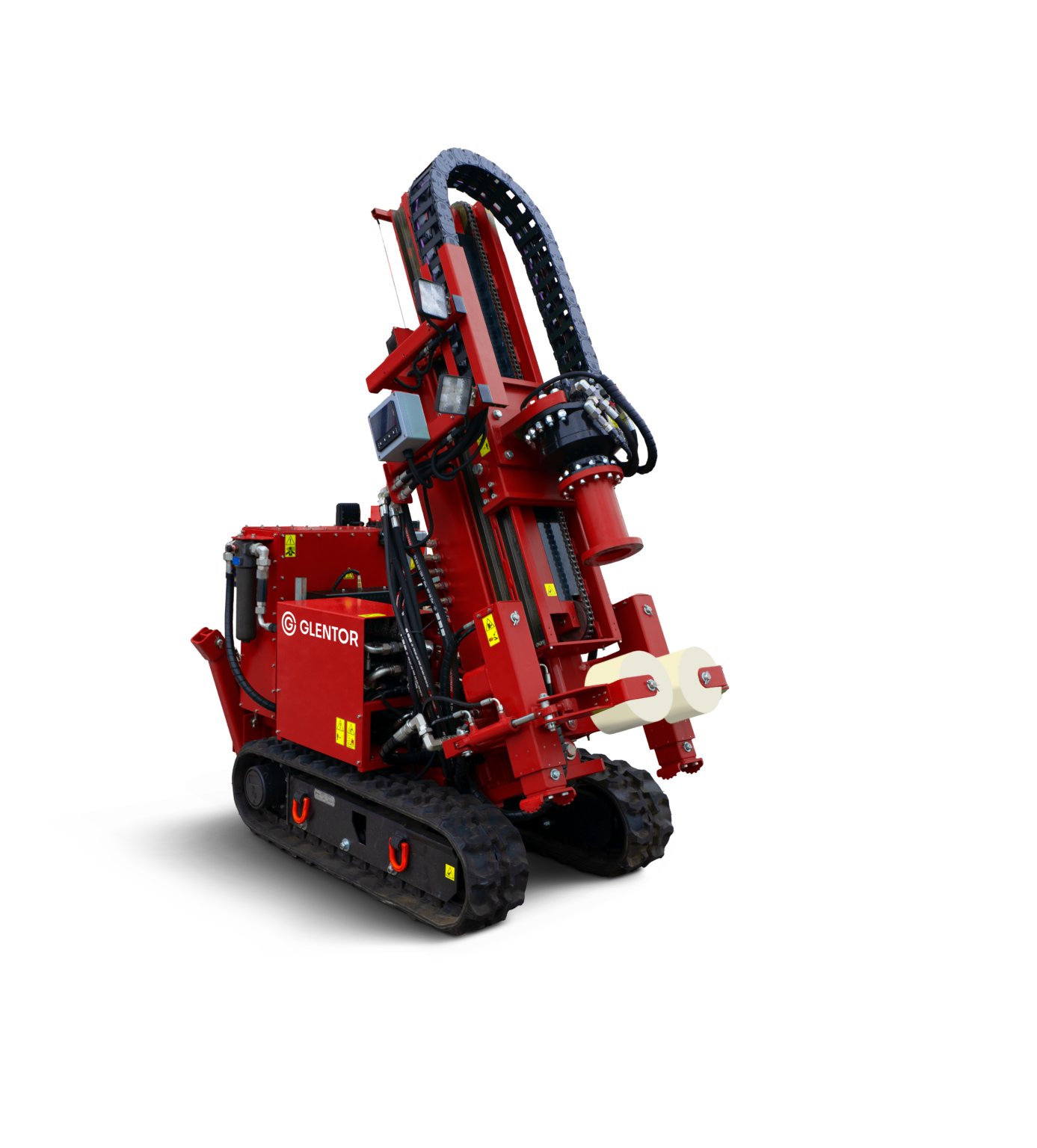

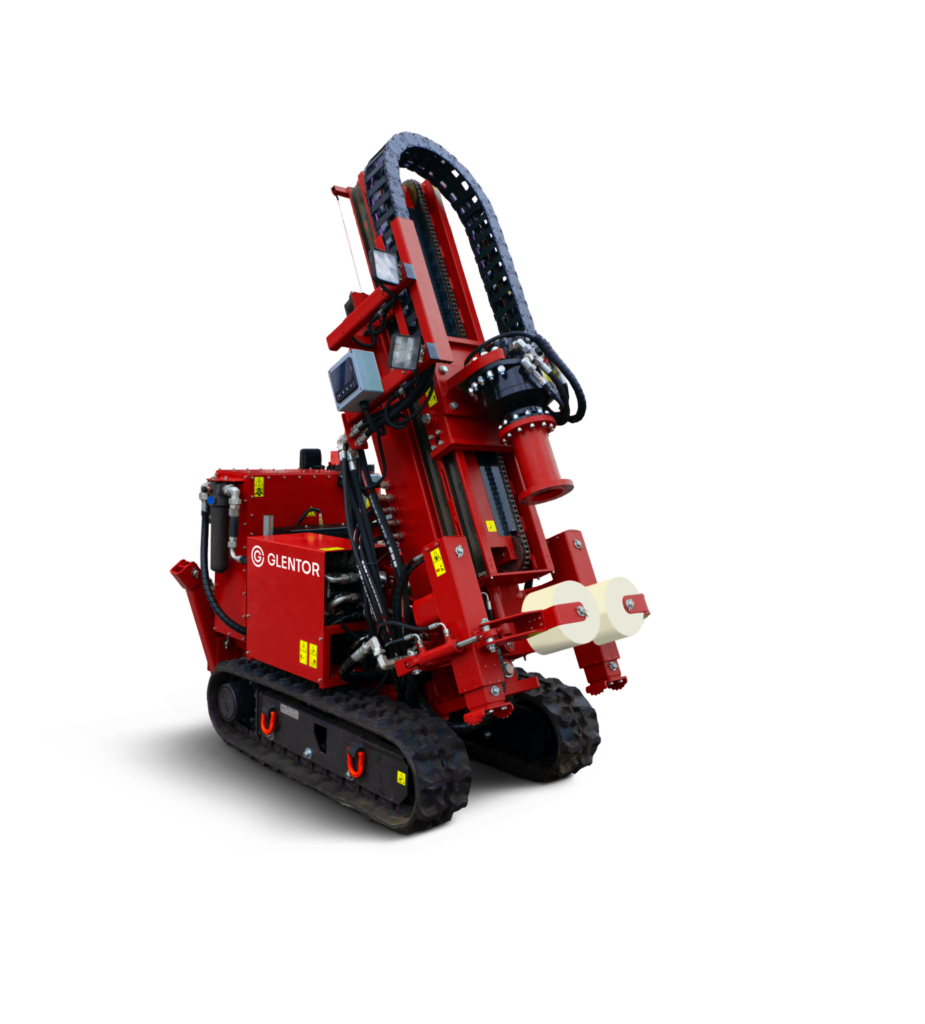

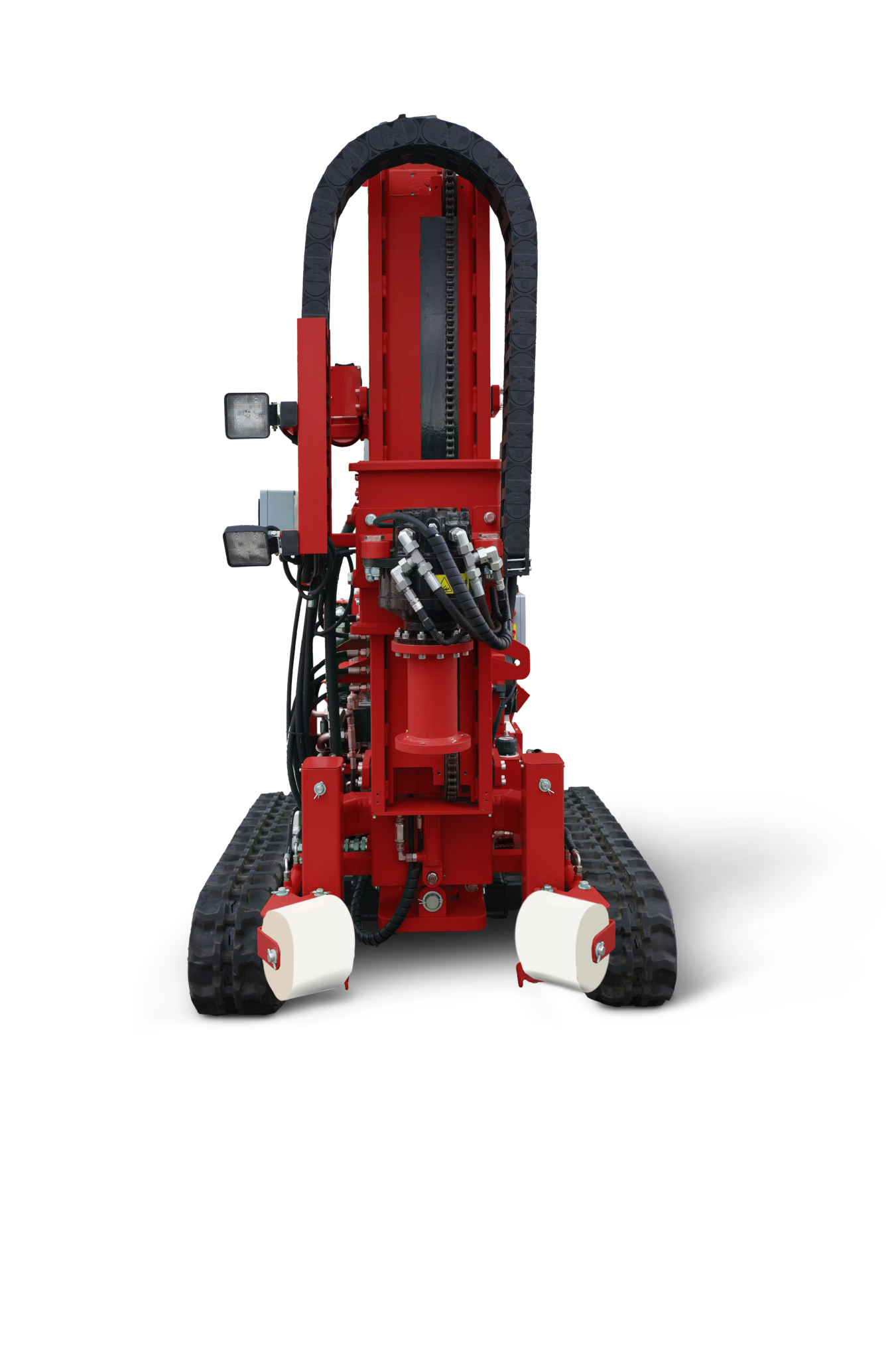

Glentor A70
Drilling machine A70
{acf_typ_stroje_en} A70
Compact power for small projects
- Self-propelled machine
- Front screw installation
- Drilling, DTH pre-drilling
- Max. 7,000 Nm
- Max. 2.4m screw
01 | Description
The A70 is the most compact drilling machine in our range. Thanks to its size and weight of 1,700 kg, it is easy to transport and is ideal where it is necessary to reach even difficult-to-reach places. Nevertheless, it offers enough power for reliable and precise foundation of smaller structures.
The machine works with a torque of up to 7,000 Nm at 13 rpm or alternatively 3,000 Nm at 45 rpm, which allows it to drill effectively even in solid soil profiles. The maximum screw length of 2.4 m is optimal for pergolas, smaller wooden buildings, fences or prefabricated structures.
The transport dimensions of the machine are 902 × 2,000 × 2,500 mm, which ensures easy handling even during transport.
02 | Specification
| Post Title | Post Date |
|---|---|
torque{acf_specifikace_nazev_en} | 7 000 Nm / 13 rpm 3 000 Nm / 45 rpm 6 000 Nm / 20 rpm{acf_specifikace_hodnota_en} |
pressing force{acf_specifikace_nazev_en} | 5 000 N{acf_specifikace_hodnota_en} |
screw length{acf_specifikace_nazev_en} | 2,4 m{acf_specifikace_hodnota_en} |
weight{acf_specifikace_nazev_en} | 1 700 kg{acf_specifikace_hodnota_en} |
transport dimensions (w × h × d){acf_specifikace_nazev_en} | 902 × 2 000 × 2 500 mm{acf_specifikace_hodnota_en} |
combustion engine{acf_specifikace_nazev_en} | Kohler ECH980{acf_specifikace_hodnota_en} |
performance{acf_specifikace_nazev_en} | 28 kW{acf_specifikace_hodnota_en} |
pressure / flow / tank volume{acf_specifikace_nazev_en} | 320 bar / 47 l/min / 70 l{acf_specifikace_hodnota_en} |
travel speed{acf_specifikace_nazev_en} | 3 km/h{acf_specifikace_hodnota_en} |
carriage tilt side/front{acf_specifikace_nazev_en} | ±18°/8°{acf_specifikace_hodnota_en} |
chassis{acf_specifikace_nazev_en} | solid{acf_specifikace_hodnota_en} |
03 | Accessories
Tool box
Tool box
Telematics unit
Telematics unit
Screw adapters*
Screw adapters*
