Glentor C65

Drilling machine C65

{acf_typ_stroje_en} C65

Modern solutions for demanding construction projects

Self-propelled machine
Side driving
Drilling, DTH piloting, hammering
Max. 6,500 Nm / 900 J
Max. 3.5m screw/pile

01 | Description

The C65 is the largest and most productive machine in the Glentor range, designed for the most demanding projects. Its robust construction, side-loading and choice of drilling or hammering carriages make it a versatile tool for installing ground screws and piles.

The machine offers a torque of 6,500 Nm at 20 rpm or 2,000 Nm at 85 rpm, which allows it to reliably handle drilling even in difficult soil conditions. The maximum screw or pile length of 3.5 m provides a wide range of applications from solar parks to industrial and transport construction.

A significant advantage of the C65 model is the possibility of fitting it with a hydraulic hammer MTB36 with a strike energy of 900 J, which allows piles to be driven where it is most effective. This makes the machine extremely versatile and also suitable for energy projects, such as the construction of photovoltaic power plants.

The C65 model can also be supplied as a single-purpose hammering machine.

02 | Specification

Post Title	Post Date
torque{acf_specifikace_nazev_en}	6 500 Nm / 20 rpm 2 000 Nm / 85 rpm{acf_specifikace_hodnota_en}
pressing force{acf_specifikace_nazev_en}	12 000 N{acf_specifikace_hodnota_en}
hammer MTB36{acf_specifikace_nazev_en}	900 J / až 900 bpm{acf_specifikace_hodnota_en}
screw/pile length{acf_specifikace_nazev_en}	3,5/4,3 m{acf_specifikace_hodnota_en}
weight of drill/hammer{acf_specifikace_nazev_en}	3 050/3 250 kg{acf_specifikace_hodnota_en}
transport dimensions (w × h × d){acf_specifikace_nazev_en}	4 000 × 2 300 × 1 800 mm{acf_specifikace_hodnota_en}
combustion engine{acf_specifikace_nazev_en}	Hatz 3H50TICD{acf_specifikace_hodnota_en}
performance{acf_specifikace_nazev_en}	43,7 kW / 2 800 rpm{acf_specifikace_hodnota_en}
pressure / flow / tank volume{acf_specifikace_nazev_en}	220 bar / 65 l/min / 100 l{acf_specifikace_hodnota_en}
travel speed{acf_specifikace_nazev_en}	3 km/h{acf_specifikace_hodnota_en}
carriage tilt side/front{acf_specifikace_nazev_en}	±15°/8°{acf_specifikace_hodnota_en}

03 | Accessories

Preventer

Purge head

DTH pilot drilling kit

Tool box

Telematics unit

Screw adapters*

Hammer with frame

Screw centering pliers

DHT předvrt

Preventer

Záznam a edit

04 | Gallery

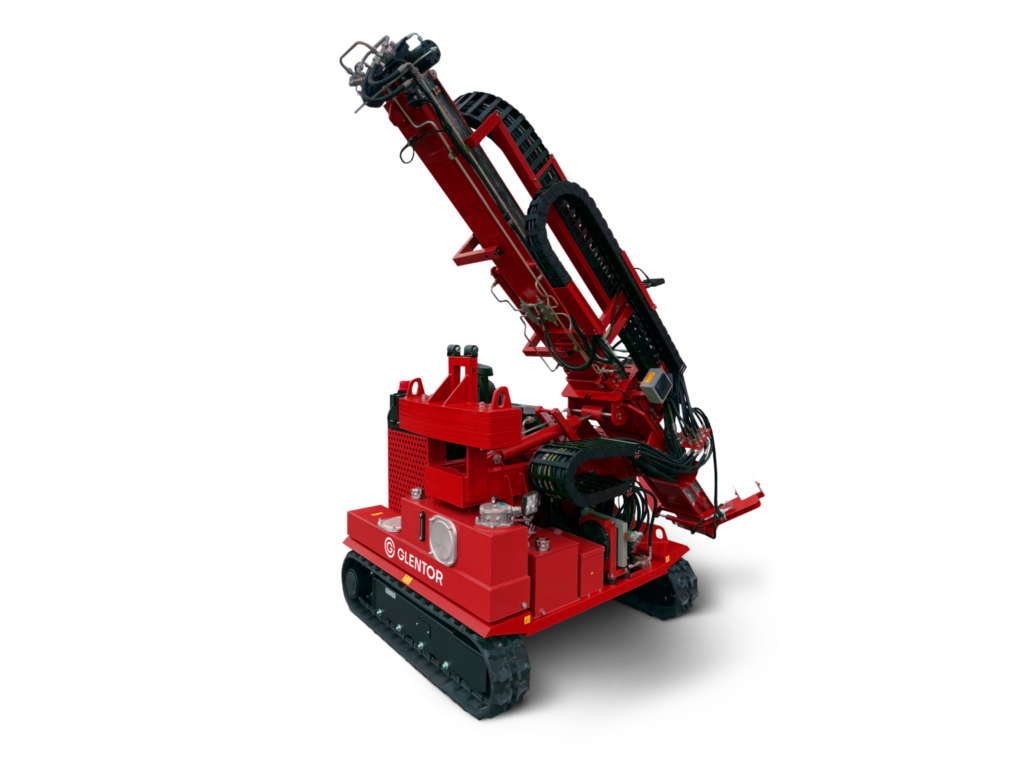

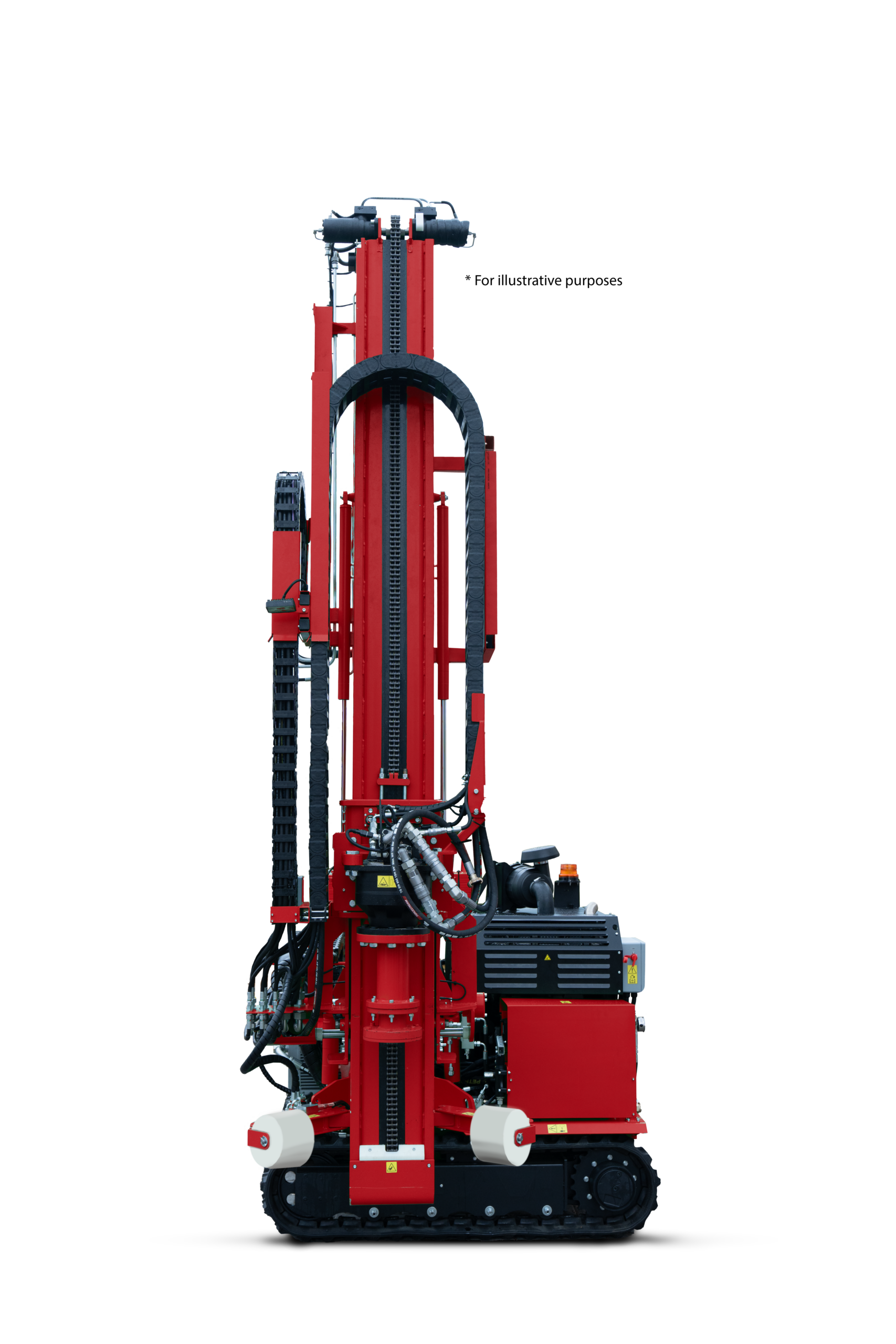

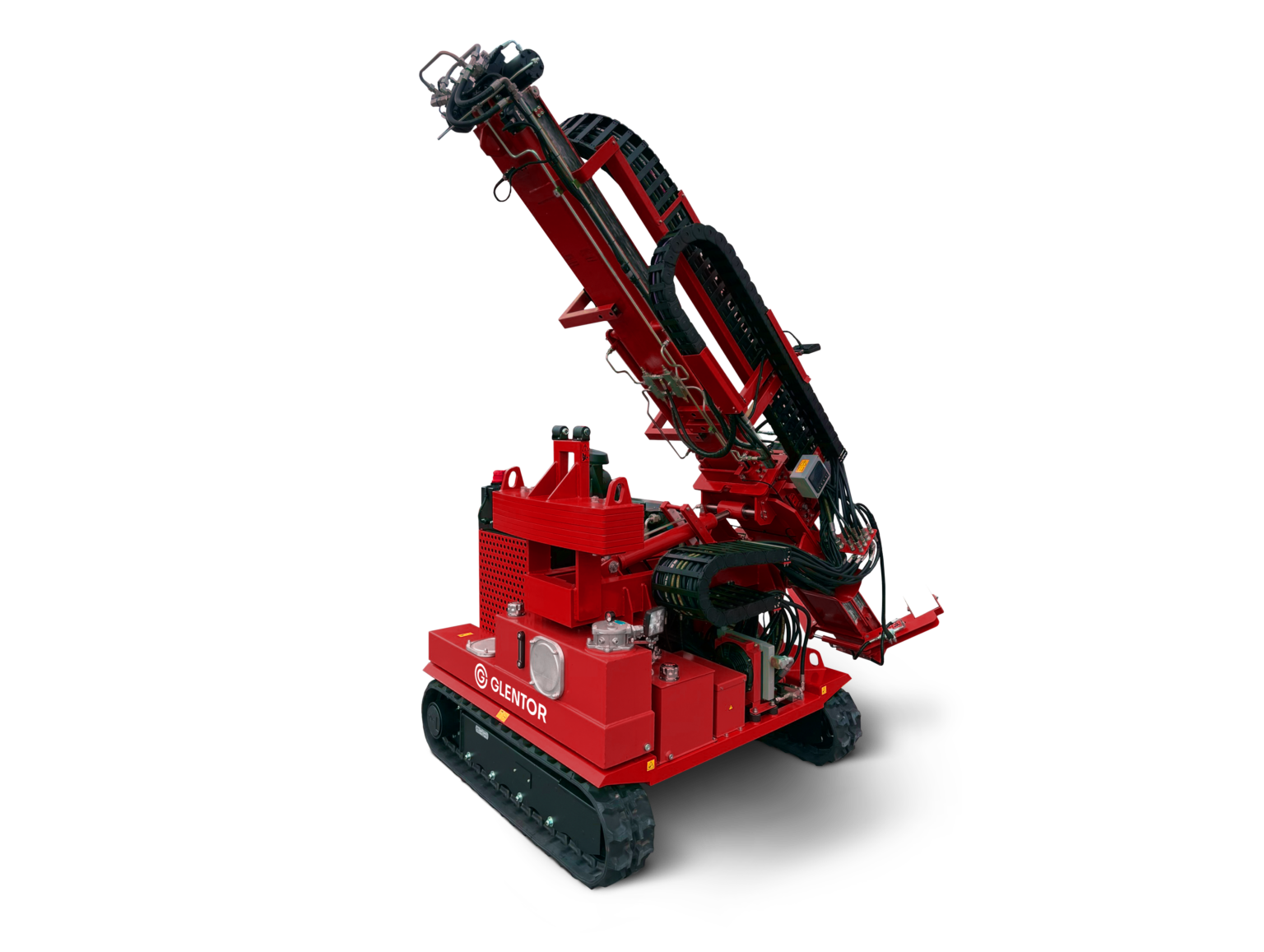

Drilling/pile driving machine C65

{acf_typ_stroje_en} C65
