With a torque of 8,000 Nm, the B80 is among the most powerful machines in its class. It allows for the installation of screws into very hard soils without reducing the machine's performance or stability.
The hydraulic system operates at 280 bar with a flow rate of 65 l/min, resulting in lower fuel consumption compared to competing models.
The operator checks all functions remotely without physical contact with the machine. This increases safety on the construction site and eliminates the risks associated with direct handling during operation.
The Hatz engine meets Stage V standards without AdBlue and is a proven solution with a long service life. The 43.7 kW (59 hp) output ensures high productivity even in demanding conditions.
A weight of 2,480 kg and a compact track undercarriage allow for easy transport to the construction site without the need for special transport equipment. Ideal for working in confined spaces and on very uneven terrain.

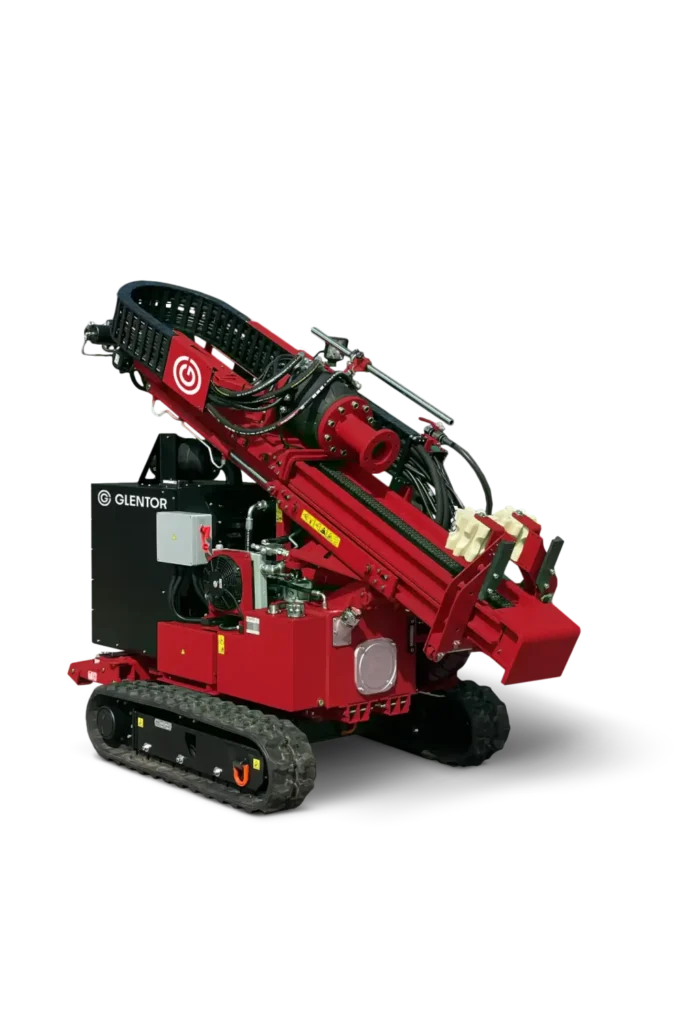

Model B80 it offers a golden mean between our machines. It offers an ideal combination of power, stability and flexibility. Thanks to its robust construction on solid undercarriage it also works reliably in more complex conditions where greater certainty and security are required.
The machine can work with continuously adjustable torque up to 8,000 Nm, which guarantees sufficient power for reliable drilling even in harder soil profiles. Maximum Length of ground screw 2.5 m provides a wide range of uses from small structures to more demanding installations of solar structures or timber buildings.
With a torque of 8,000 Nm, the B80 is among the most powerful machines in its class. It allows for the installation of screws into very hard soils without reducing the machine's performance or stability.
The hydraulic system operates at 280 bar with a flow rate of 65 l/min, resulting in lower fuel consumption compared to competing models.
The operator checks all functions remotely without physical contact with the machine. This increases safety on the construction site and eliminates the risks associated with direct handling during operation.
The Hatz engine meets Stage V standards without AdBlue and is a proven solution with a long service life. The 43.7 kW (59 hp) output ensures high productivity even in demanding conditions.
A weight of 2,480 kg and a compact track undercarriage allow for easy transport to the construction site without the need for special transport equipment. Ideal for working in confined spaces and on very uneven terrain.
| Post Title | Post Date |
|---|---|
Motor{acf_specifikace_nazev_en} | Hatz 3H50TICD, Stage V{acf_specifikace_hodnota_en} |
Engine Power{acf_specifikace_nazev_en} | 43.7 kW (59 hp) @ 2,800 rpm{acf_specifikace_hodnota_en} |
Torque{acf_specifikace_nazev_en} | 8,000 Nm @ 20 rpm 4,000 Nm @ 65 rpm{acf_specifikace_hodnota_en} |
Downward force{acf_specifikace_nazev_en} | 12,000 N{acf_specifikace_hodnota_en} |
Maximum drilling depth{acf_specifikace_nazev_en} | 2,500 mm{acf_specifikace_hodnota_en} |
Hydraulics — Pressure{acf_specifikace_nazev_en} | 280 bar{acf_specifikace_hodnota_en} |
Hydraulics — Flow{acf_specifikace_nazev_en} | 65 litres per minute{acf_specifikace_hodnota_en} |
Hydraulics — tank volume{acf_specifikace_nazev_en} | 100 ml{acf_specifikace_hodnota_en} |
Machine weight{acf_specifikace_nazev_en} | 2,480 kg{acf_specifikace_hodnota_en} |
Shipping dimensions (W × H × D){acf_specifikace_nazev_en} | 1530 × 2100 × 3500 mm{acf_specifikace_hodnota_en} |
Train{acf_specifikace_nazev_en} | Tracked{acf_specifikace_hodnota_en} |
Control{acf_specifikace_nazev_en} | Fully wireless remote{acf_specifikace_hodnota_en} |
Emissions standard{acf_specifikace_nazev_en} | Stage V (without AdBlue){acf_specifikace_hodnota_en} |
Travel speed{acf_specifikace_nazev_en} | 3 km/h{acf_specifikace_hodnota_en} |
Mast tilt — front{acf_specifikace_nazev_en} | 8°{acf_specifikace_hodnota_en} |
Mast tilt - lateral{acf_specifikace_nazev_en} | ±15°{acf_specifikace_hodnota_en} |
| Parameter | B80 | |||
|---|---|---|---|---|
| Type | Self-propelled | Self-propelled | Self-propelled | Accessory |
| Motor | Kohler, 28 kW | Hatz, 43.7 kW | Hatz, 43.7 kW | None |
| Torque | 7,000 Nm | 8 000 Nm | 6,500 Nm | 5,000 Nm |
| Mass | 1.7 tonnes | 2,480 kg | 3 050 kg | 480 kg |
| Max. screw length | 2.55 m | 2.5 metres | 3.5m | 2.5 metres |
| Hammer | No | No | Yes (900 J) | No |
| Type of foundation | Forehead | Forehead | Side | - |
When to choose B80? When you need the highest torque in its class and are working with deeper bores (up to 2.5 m). Ideal for modular buildings, timber-frame construction, and projects on uneven terrain.
The Glentor B80 comes standard with the following features:
The Glentor B80 can be fitted with the following optional equipment:
B80 is compatible with classic ground screws. We recommend consulting with the technical team before purchasing special design screws.
The crawler undercarriage allows operation on uneven terrain, in mud, sandy soils, and hard ground. The B80 moves without difficulty on slopes of up to 20°.
The average time to screw in one screw is 2–8 minutes, depending on:
Yes. All operators must undertake safety and operational training. Glentor provides initial training; without training or prior experience, the machine must not be operated unsupervised.
B80 (8,000 Nm, 2,480 kg) — drilling machine with face mounting of the working tool
C65 (6,500 Nm, 3,050 kg, with MTB36 900 J hammer) - a working tool positioned perpendicular to the travel axis, which allows for both screw driving and pile driving.
Glentor provides a 1-year warranty for manufacturing defects. Normal wear and tear and maintenance (oil changes, filter replacements) are the responsibility of the operator. An extended warranty (max. 24 months) is possible upon agreement.
Standard: 12–14 weeks from order.
Rent: possible by agreement.
Yes. Please contact our sales team for individual machine rentals or long-term lease agreements.
Fill in the form and our team will send you a no-obligation quote within 24 hours.
