The Glentor C65 is the only Glentor machine line that combines screw pile driving and pile hammering in one machine without the need to purchase two devices. The optional MTB36 hydraulic hammer (900 J, up to 900 bpm) allows for:
Ideal for projects requiring flexibility and a multi-purpose solution.
Unlike front loading in models A70 a B80, the C65 offers sideways loading with turret tilt:
This means:
The Glentor C65 is available in the following variants:
Choose the configuration to suit your needs.

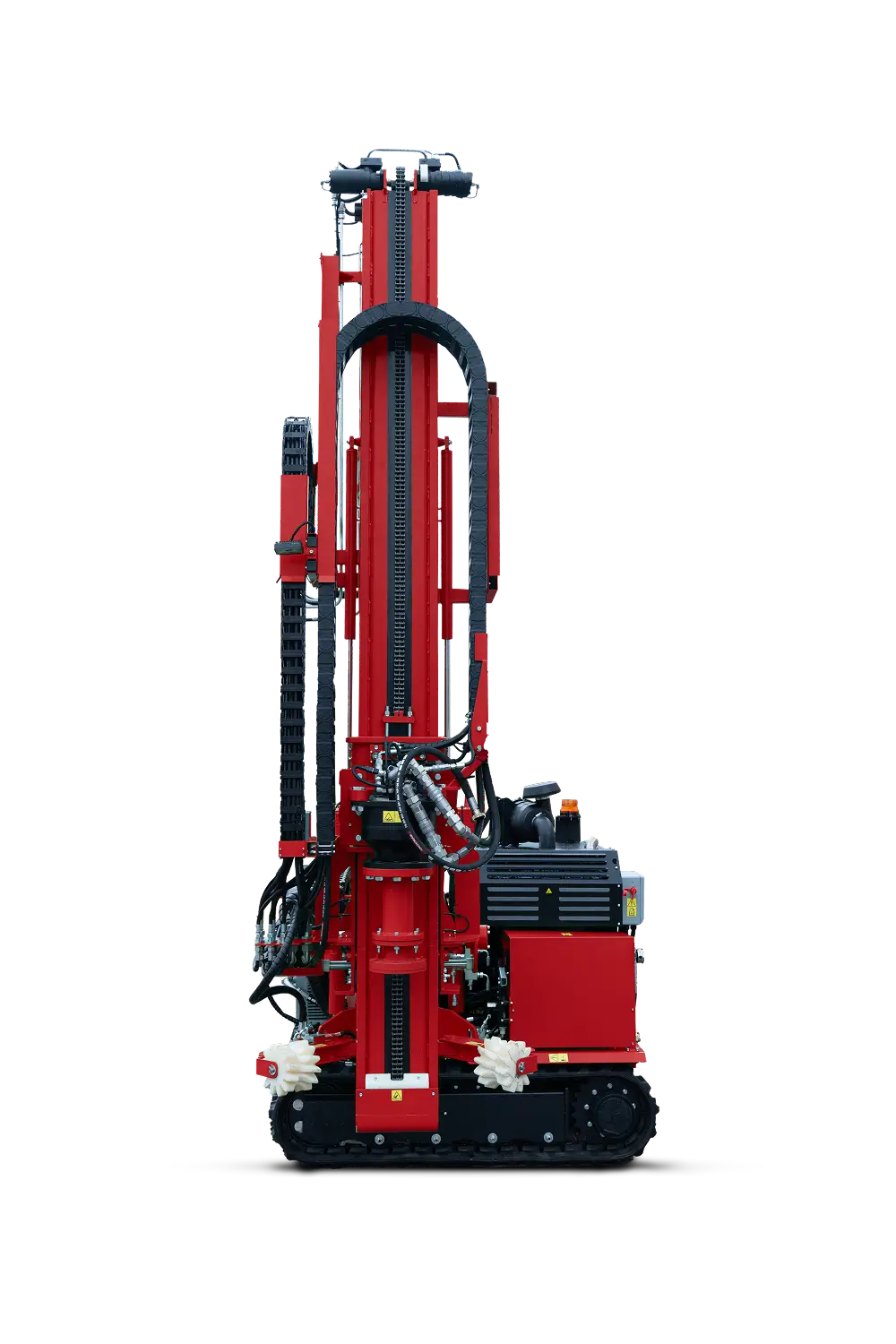

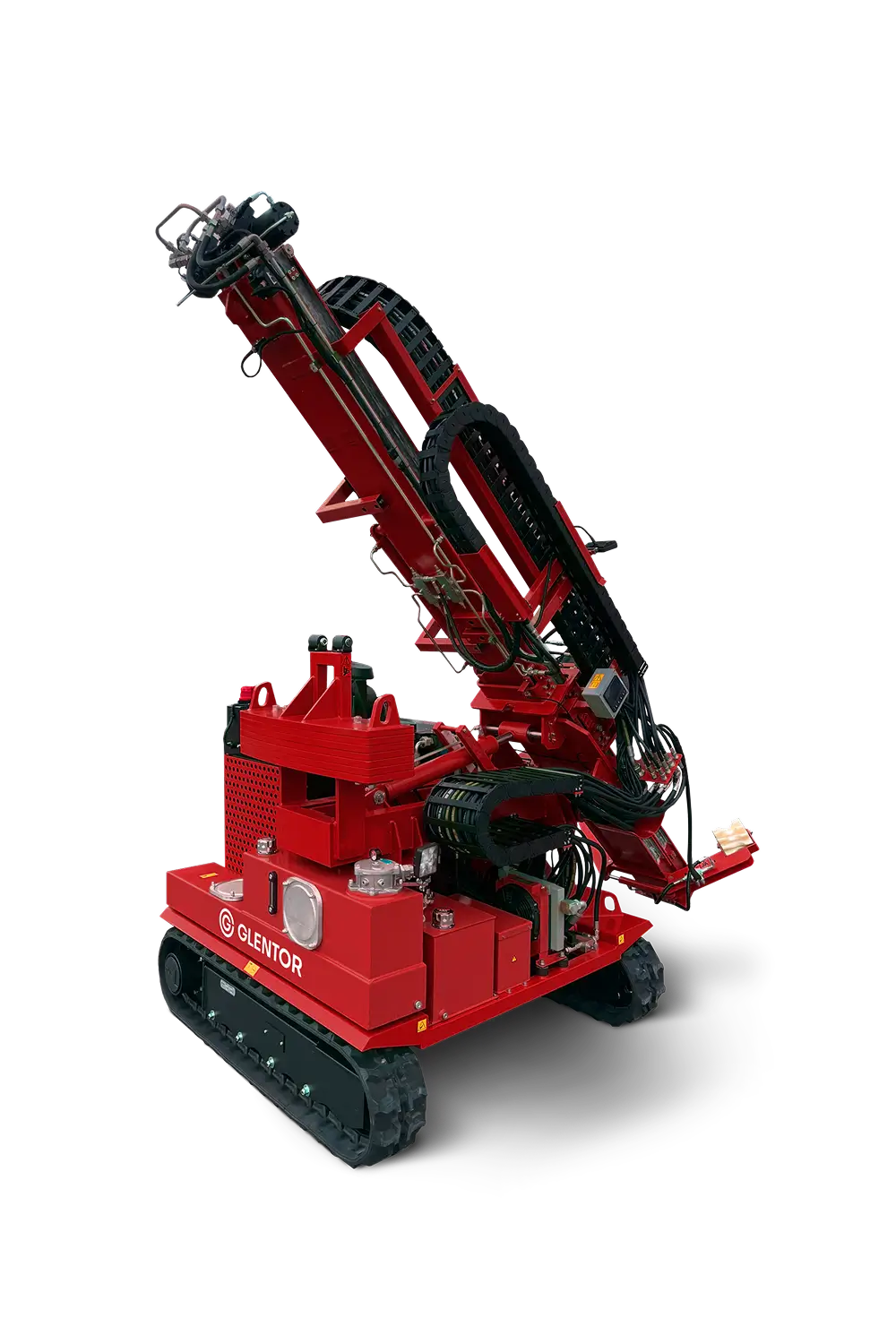

Model C65 It is the largest and most productive machine in the Glentor series, designed for the most demanding projects. Its robust construction, side loading, and the option of a drilling or driving mast make it a versatile assistant for installing ground screws and piles.
The machine offers Torque 6,500 Nm at 20 rpm sky 2,000 Nm at 85 rpm, which allows it to reliably handle drilling even in challenging soil conditions. Maximum screw length 3.5 m or pile length 4.3 m provides a wide range of applications from solar parks to industrial and transport construction.
A significant advantage of the C65 model is the option of fitting a hydraulic hammer. MTB36 with 900 J impact energy, which allows the establishment of pylons where it is more efficient to do so. This makes the machine exceptionally versatile and also suitable for projects in the energy sector, for example when building photovoltaic power plants.
The Model C65 is also available as a single-purpose pile driving machine.
The Glentor C65 is the only Glentor machine line that combines screw pile driving and pile hammering in one machine without the need to purchase two devices. The optional MTB36 hydraulic hammer (900 J, up to 900 bpm) allows for:
Ideal for projects requiring flexibility and a multi-purpose solution.
Unlike front loading in models A70 a B80, the C65 offers sideways loading with turret tilt:
This means:
The Glentor C65 is available in the following variants:
Choose the configuration to suit your needs.
| Post Title | Post Date |
|---|---|
Motor{acf_specifikace_nazev_en} | Hatz 3H50TICD, Stage V{acf_specifikace_hodnota_en} |
Engine Power{acf_specifikace_nazev_en} | 43.7 kW (59 hp) @ 2,800 rpm{acf_specifikace_hodnota_en} |
Torque{acf_specifikace_nazev_en} | 6,500 Nm at 20 rpm 2,000 Nm @ 85 rpm{acf_specifikace_hodnota_en} |
Downward force{acf_specifikace_nazev_en} | 12,000 N{acf_specifikace_hodnota_en} |
MTB36 hydraulic breaker{acf_specifikace_nazev_en} | 900 J, up to 900 bpm{acf_specifikace_hodnota_en} |
Maximum screw length{acf_specifikace_nazev_en} | 3.5m{acf_specifikace_hodnota_en} |
Maximum pile length{acf_specifikace_nazev_en} | 4.3 m{acf_specifikace_hodnota_en} |
Weight - drilling{acf_specifikace_nazev_en} | 3 050 kg{acf_specifikace_hodnota_en} |
Weight — with hammer{acf_specifikace_nazev_en} | 3.25 metric tonnes{acf_specifikace_hodnota_en} |
Shipping dimensions (W × H × D){acf_specifikace_nazev_en} | 4000 × 2300 × 1800 mm{acf_specifikace_hodnota_en} |
Hydraulics — Pressure{acf_specifikace_nazev_en} | 220 bar{acf_specifikace_hodnota_en} |
Hydraulics — Flow{acf_specifikace_nazev_en} | 65 litres per minute{acf_specifikace_hodnota_en} |
Hydraulics — tank volume{acf_specifikace_nazev_en} | 100 ml{acf_specifikace_hodnota_en} |
Train{acf_specifikace_nazev_en} | Tracked{acf_specifikace_hodnota_en} |
Control{acf_specifikace_nazev_en} | Fully wireless remote{acf_specifikace_hodnota_en} |
Emissions standard{acf_specifikace_nazev_en} | Stage V (without AdBlue){acf_specifikace_hodnota_en} |
Travel speed{acf_specifikace_nazev_en} | 3 km/h{acf_specifikace_hodnota_en} |
Mast tilt - lateral{acf_specifikace_nazev_en} | ±15°{acf_specifikace_hodnota_en} |
Mast tilt – front{acf_specifikace_nazev_en} | 8°{acf_specifikace_hodnota_en} |
Founding{acf_specifikace_nazev_en} | Side{acf_specifikace_hodnota_en} |
| Parameter | C65 | |||
|---|---|---|---|---|
| Type | Self-propelled | Self-propelled | Self-propelled | Accessory |
| Motor | Kohler, 28 kW | Hatz, 43.7 kW | Hatz, 43.7 kW | None |
| Torque | 7,000 Nm | 8 000 Nm | 6,500 Nm | 5,000 Nm |
| Mass | 1.7 tonnes | 2,480 kg | 3 050 kg | 480 kg |
| Max. screw length | 2.55 m | 2.5 metres | 3.5m | 2.5 metres |
| Hammer | No | No | Yes (900 J) | No |
| Type of foundation | Forehead | Forehead | Side | - |
When to choose the C65? When working on large projects (photovoltaic power plants > 5 MW, industrial, road construction) or if you want to combine screw-piling and impact-piling without purchasing two machines.
The Glentor C65 comes as standard with the following equipment:
The Glentor C65 can be fitted with the following additional equipment:
B80 (8,000 Nm, 2,480 kg) — drilling machine with face mounting of the working tool
C65 (6,500 Nm, 3,050 kg, with MTB36 900 J hammer) - a working tool positioned perpendicular to the travel axis, which allows for both screw driving and pile driving.
Hammering is suitable for homogeneous soft ground.
The MTB36 hammer is capable of working with piles up to 4.3m deep.
Yes, no problem. The high clamping force (12,000 N) ensures stable screw guidance in hard subsoil. For very hard rock, we recommend supplementing with DTH pre-drilling.
Yes. Glentor offers the C65 in the following variants:
Choose the configuration to suit your needs.
The C65 can be transported on a trailer with a load capacity of up to 3.5 tonnes.
We recommend that you complete operator training. Glentor offers basic training for pipe ramming machine operators, covering machine operation, maintenance, and safety when working with remote controls.
Glentor provides a 1-year warranty for manufacturing defects. Normal wear and tear and maintenance (oil changes, filter replacements) are the responsibility of the operator. An extended warranty (max. 24 months) is possible upon agreement.
Standard: 12–14 weeks from order.
Rent: possible by agreement.
Yes. Please contact our sales team for individual machine rentals or long-term lease agreements.
Fill in the form and our team will send you a no-obligation quote within 24 hours.
